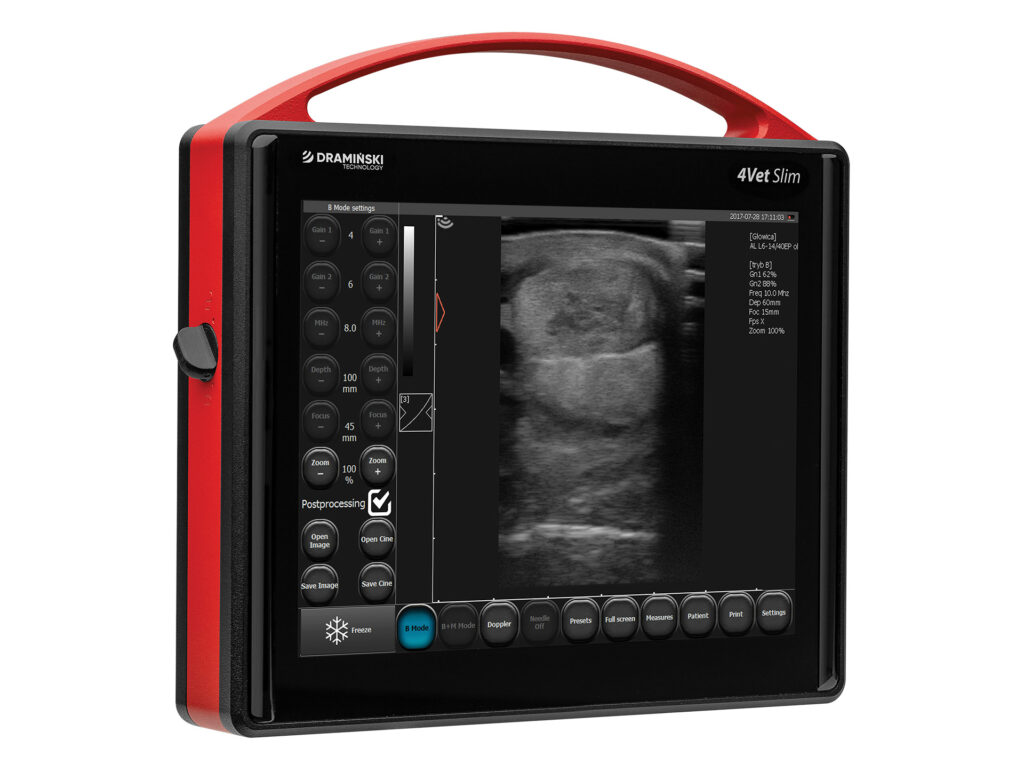

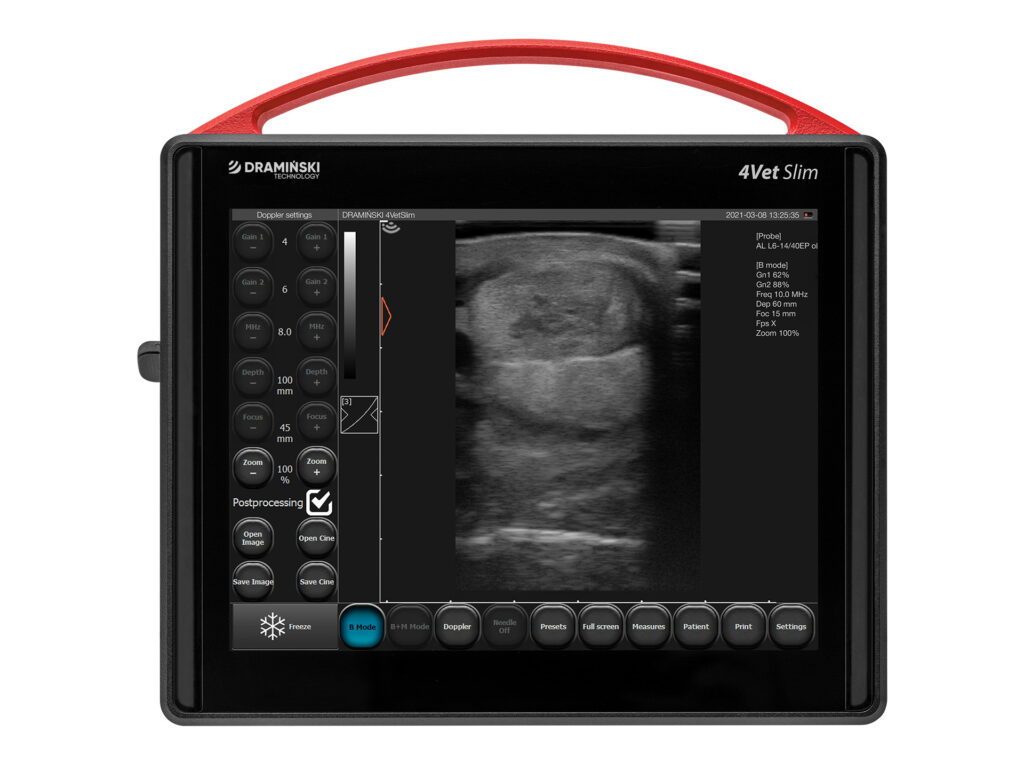

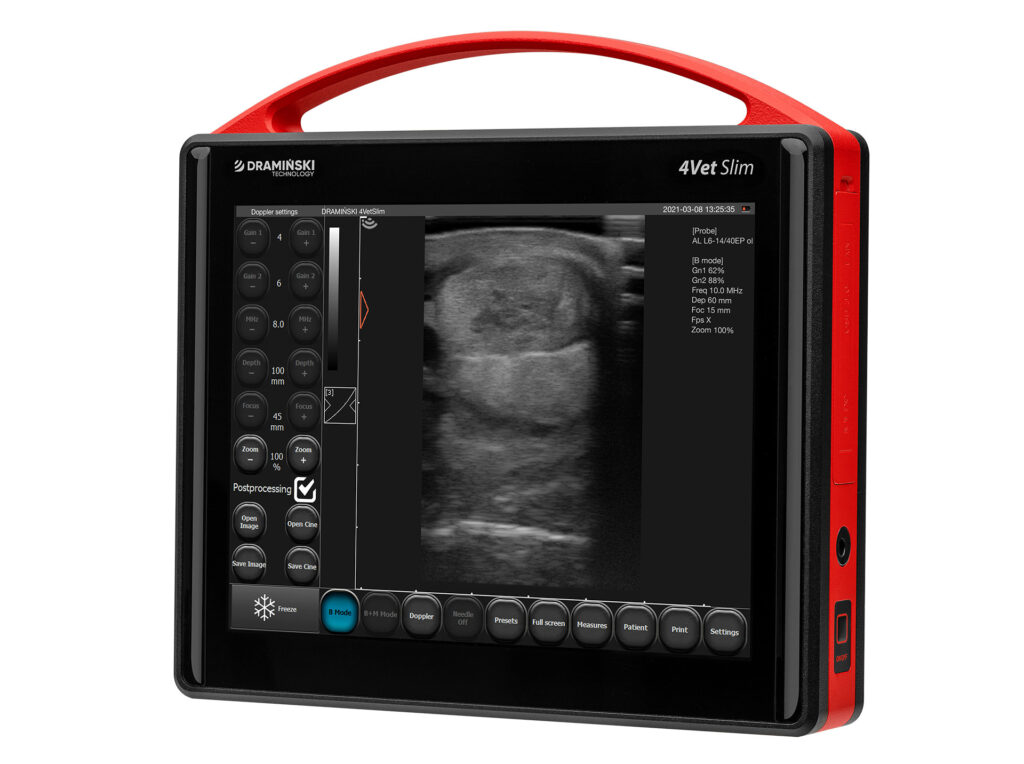

4Vet Slim ultrasound scanner
This ultrasound scanner combines elegance, simplicity and functionality.
Ultrasound Scanner 4Vet Slim
Ultrasound scanner with a high quality imaging for the diagnosis of small animals and horses. Perfect for veterinary mixed practises.
Key Features of the 4Vet Slim Ultrasound
- Compatible with various probes
- Compatible with OPU (Ovum Pickup) set
- Portable / stationary
- Mains power or efficient battery power
Why is it worth having the DRAMINSKI 4Vet Slim?
ULTRASOUND IMAGING IN ANY LIGHTING CONDITIONS
Obtain a clear image no matter where you are, thanks to a high contrast, bright screen.
ENERGY INDEPENDENCE
Perform examination even with limited access to electricity. A more powerful battery pack enables 4 hours of work on a single charge.
MODERN DESIGN
Combination of aluminium and glass, manual finishing of every detail enchants with the shape and elegance. All that is to make your customers feel exceptional.
SIMPLICITY
All the necessary functions are at hand, a sensitive touch screen makes setting of a proper image faster.
FUNCTIONALITY
After 25 seconds Slim is ready for operation. A wide choice of the probes enables examination of different patients. Echo enhancement of the needle facilitates injections, and the colour Doppler helps differentiate the blood vessels from other structures. Do you need anything more for effective testing?
SAFETY
Two-year warranty, for both the device and the probes, gives a sense of comfort of work. We know how important it is because we have been working together with veterinarians for many years.
Technical data
B Mode
B+B Mode
4B Mode
M Mode
B+M Mode
Color Doppler
Power Doppler (PDI)
Pulse Wave Doppler (PWD)
range: 2-14 MHz
(depends on probe)
Backfat 2-5 MHz
Convex 1-6 MHz
Convex 2-5 MHz
Convex 2-8 MHz
Hockey stick 6-14 MHz
Abdominal linear 4-12 MHz
Abdominal linear 6-14 MHz
Microconvex 4-9 MHz
OPU 4-9 MHz
Rectal linear 4-9 MHz
Rectal convex 2-8 MHz
Rectal microconvex (P-probe) 4-9 MHz
Yes
Freeze
Zoom 60 – 300%
Full screen
Invert left-right and up-down
Saving images
Saving cine loops
Frame averaging
Needle visualization enhancement
Depend on probe:
Uterus Mare I, II and III, Mare Pregnancy
Horse Testicle
Horse Tendons, Horse Knee, Horse Spleen
Dog abdominal, Cat abdominal
Yes
Basic: Distance, Follicle, Area, Ellipse Area, Grid, Stenosis, Volume
Obstetric package: aging tables for different species
Cardiology package: Heart Rate (HR), LA/Ao, Left Ventricle function (LV), Left Ventricle Volume: V Simpson’s LVAM – LVAP method, V Simpson’s Single plane method, V Bullet method
Doppler: Resistance Index (RI), Pulsation Index (PI), Peak Systolic Velocity (PSV), End-Diastolic Velocity (EDV), Average Velocity (AVG)
Doppler Point
Acceleration Time (AT)
Heart Rate (HR)
Blood Flow Area %
Hidden active fields
Easy distance measurement
Precise measurements with magnifying glass
10.4” LCD LED
1000 cd/m2
1024 x 768 px
Capacitive touchscreen
60 GB
AVI, PNG, DICOM 3.0
To external flash drive via USB
2 x USB 3.0, 1 x LAN, 1 x Display port
No
Power adapter and battery
Up to 4 h
Up to 3 h
About 25 s
Width 26 cm, Height 25 cm, Depth 5.5 cm
3.58 kg
IP30
Wheel stand with height and angle regulation
Soft carrying case
Rectal probe extension for cattle
Rectal probe extension for sheep
T-holder for rectal probe
T-holder for rectal convex probe
Standoff
Diagnostic images
Reference
The 4VetSlim ultrasound machine perfectly meets the demands of equine field practice. It is lightweight, compact, and, combined with ergonomic shoulder straps, allows for comfortable and focused work. The interchangeable probes provide a broad diagnostic range, essential for working with horses. The small but stable stand enables use of the ultrasound in almost any condition. The touchscreen and attractive design are immediately noticed by the owners of the animals being examined. The package is completed with a very sturdy case that holds additional accessories. I am pleased to use this device.
I now work with the 4Vet Slim every day, and I really like it! The quality is impressive, and the operation is straightforward! Key advantages: Splash resistance; Excellent screen resolution; Easy to use; Quick startup; Long battery life; Simple storage and sharing of recorded images/sequences! Thank you very much – I am convinced about the 4Vet Slim and plan to work many more hours with this device throughout the season.
The 4Vet Slim is very fast and easy to ‘set up and scan’. The image is nice and can be fine-tuned using very obvious and user-friendly controls. The Doppler function is a very useful modality to have. Battery life is fantastic with a staggeringly short charge time. Our clients are always impressed with the physical table style appearance of the scanner
The set includes:
- 4Vet Slim ultrasound scanner
- Ultrasound probe of your choice
- Battery
- Suspenders
- Battery charger
- Power supply
- User manual
- Transport case
Set configuration
Configure a set tailored to your needs- Probes
- Accessories
Abdominal microconvex probe 150
- Frequency range:
4 – 9 MHz
- Central frequency:
6.5 MHz
- Scanning depth:
40 – 150 mm
- Lens radius:
15 mm
- Number of crystals:
128
Abdominal convex probe 156
- Frequency range:
2 – 8 MHz
- Central frequency:
5 MHz
- Scanning depth:
60 – 300 mm
- Lens radius:
50 mm
- Number of crystals:
128
Abdominal convex probe 161
- Frequency range:
2 – 5 MHz
- Central frequency:
3.5 MHz
- Scanning depth:
60 – 300 mm
- Lens radius:
50 mm
- Number of crystals:
128
Rectal linear probe 163
- Frequency Range:
4 – 9 MHz
- Central frequency:
7 MHz
- Scanning depth:
30 – 150 mm
- Probe face length:
60 mm
- Number of crystals:
128
Abdominal linear probe 171
- Frequency range:
6 – 14 MHz
- Central frequency:
10 MHz
- Scanning depth:
40 – 100 mm
- Probe face length:
40 mm
- Number of crystals:
128
Abdominal convex probe 172
- Frequency range:
1 – 6 MHz
- Central frequency:
3.5 MHz
- Scanning depth:
80 – 350 mm
- Lens radius:
60 mm
- Number of crystals:
128
Backfat probe 174
- Frequency range:
2 – 5 MHz
- Central frequency:
3.7 MHz
- Scanning depth:
60 – 300 mm
- Probe face length:
147 mm
- Number of crystals:
128
Abdominal microconvex probe 181
- Frequency range:
4 – 9 MHz
- Central frequency:
6.5 MHz
- Scanning depth:
40 – 150 mm
- Lens radius:
11 mm
- Number of crystals:
128
Microconvex probe for OPU 181/A
- Frequency range:
4 – 9 MHz
- Central frequency:
6.5 MHz
- Scanning depth:
40 – 150 mm
- Lens radius:
11 mm
- Number of crystals:
128
Abdominal convex probe 182
- Frequency range:
2 – 5 MHz
- Central frequency:
3.5 MHz
- Scanning depth:
60 – 350 mm
- Lens radius:
60 mm
- Number of crystals:
128
Backfat probe 188/2
- Frequency range:
2 – 5 MHz
- Central frequency:
3.7 MHz
- Scanning depth:
60 – 300 mm
- Probe face length:
180 mm
- Number of crystals:
128
Backfat probe 188/4
- Frequency range:
2 – 5 MHz
- Central frequency:
3.7 MHz
- Scanning depth:
60 – 300 mm
- Probe face length:
180 mm
- Number of crystals:
128
Rectal linear probe 191
- Frequency range:
5 – 10 MHz
- Central frequency:
7.5 MHz
- Scanning depth:
10 -150 mm
- Probe face length:
40 mm
- Number of crystals:
128
Rectal microconvex probe (P-probe) 192
- Frequency range:
4 – 9 MHz
- Central frequency:
5 MHz
- Scanning depth:
60 – 300 mm
- Lens radius:
20 mm
- Number of crystals:
128
Linear hockey stick 194
- Frequency range:
6 – 14 MHz
- Central frequency:
9 MHz
- Scanning depth:
10 – 60 mm
- Probe face length:
26 mm
- Number of crystals:
128
Abdominal microconvex probe 195
- Frequency range:
4 – 9 MHz
- Central frequency:
6.5 MHz
- Scanning depth:
40 – 150 mm
- Lens radius:
15 mm
- Number of crystals:
128
Abdominal linear probe 196
- Frequency range:
4 – 12 MHz
- Central frequency:
8 MHz
- Scanning depth:
10 – 100 mm
- Probe face length:
40 mm
- Number of crystals:
128
Rectal convex probe 212
- Frequency range:
2 – 8 MHz
- Central frequency:
5 MHz
- Scanning depth:
60 – 250 mm
- Lens radius:
60 mm
- Number of crystals:
128
