iScan 2 MULTI
iScan 2 MULTI ultrasound scanner
As versatile as you are!
Ultrasound Scanner iScan 2 MULTI

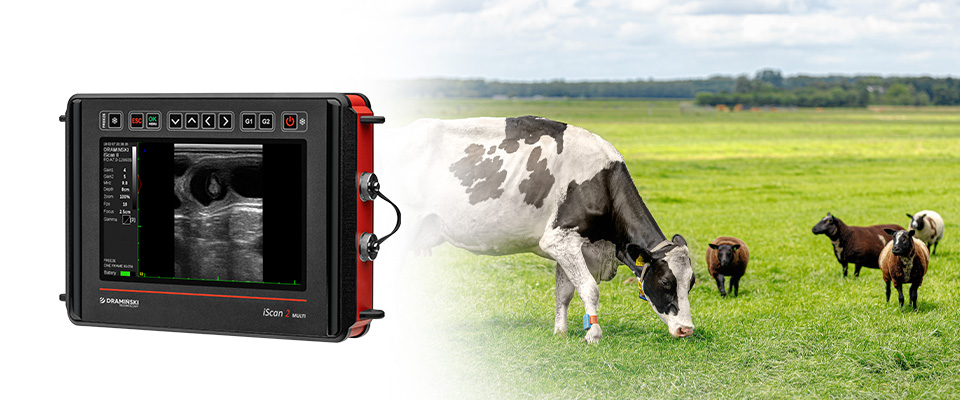

iScan2 MULTI is a multi-task on field ultrasound scanner with interchangeable probes.
Fast shipping
Original product
2 years warranty
+48 89 675 26 00 Efficient work in every conditions with DRAMIŃSKI Goggle System
This time our newest model of ultrasound video goggles is more comfortable, with excellent adjustment on the user’s head. If you examine a lot of animals in a row or work in very light rooms, these goggles with clear, legible image will make your work more comfortable.
- LCD Goggles
- OLED Goggles
What makes the DRAMINSKI iScan 2 MULTI the perfect choice?
WIDE RANGE OF AVAILABLE PROBES
Linear rectal probe – for examination of reproductive system, confirmation of pregnancy and determination of sex of foetus — horse and cattle. With the extension, it can be used for rectal examination of sheep and alpacas — ovary diagnostics, pregnancy confirmation and monitoring. It can be used for calf lung examination.
Abdominal linear probe – examination of horse tendons, eyeball. It can be used for examination of exotic animals and fish.
Convex rectal probe – (rectal) examination of cattle reproductive system, small ruminants and pig (through abdomen). Horse pelvis diagnostics.
Convex abdominal probe — pregnancy confirmation in small ruminants and sows, lung examination in cattle and horses, examination of umbilical region in calves and foals.
OPU – aspiration of oocytes from ovarian follicles in cattle. Drainage of fluid from ovarian cysts in horses.
Backfat probe — measurement of backfat thickness and lonigissimus dorsi muscle area of cattle and pig meat breeds.
And many more…
NEW IMAGE QUALITY
The scanning quality is ensured by a hi-tech processor which enables the system to use the latest image processing algorithms.
LuciD™ is a technology reducing the noise and increasing the contrast, sharpness and tissue differentiation. It makes the image clear and easier to interpret.
Goggles and sunshield guarantee clear image on a sunny day — available as an option.
LARGE SCREEN MEANS GREATER EXAMINATION PRECISION
Large, 7”-inch LCD screen with wide viewing angles ensures comfortable work. We know that you often face difficult conditions. That is why we rugged the screen to make it less prone to damage.
HIGH PERFORMANCE, NON-STOP
A powerful battery provides up to 7 hours of non-stop operation. In addition, you can turn off the screen to save power without shutting the scanner down. And the included suspenders will not let you get tired for the entire day.
START DIAGNOSTICS IN A FEW SECONDS
Adjust the scanner to your needs, select the functions you use most often and save them in the quick access menu (Q). From that moment you will just need to press one button.
STURDY AS ALWAYS, LIGHTER THAN YOU COULD THINK
Rugged casing makes the iScan 2 MULTI durable. The active ventilation system implemented in the casing ensures good operation parameters regardless of heat or humidity. The components used in the design gave the weight of the scanner with the battery of just 2060 g.
CLEANING AND DISINFECTION
Meet the expectations of your customers regarding biological security. Flat screen, probe socket protection slide and waterproof keys make cleaning the ultrasound scanner easier.
ACCESSORIES
- Goggles
- Screen sun shield
- Linear rectal probe extension for cattle
- Linear rectal probe extension for sheep
- Battery support
- Gel stand-off
Technical data
B Mode
B+B Mode
B+M Mode
range: 2-14 MHz
(depends on probe)
Backfat 2-5 MHz
Convex 2-5 MHz
Convex 2-8 MHz
Abdominal linear 6-14 MHz
Microconvex 4-9 MHz
OPU 4-9 MHz
Rectal linear 4-9 MHz
Rectal convex 2-8 MHz
Rectal microconvex (P-probe) 4-9 MHz
Yes
Freeze
Zoom 60 – 200%
Full screen
Invert left-right
Image rotation
Saving images
Saving cine loops
Frame averaging
Negative
LuciD
Possible to save 5 presets
Yes (LuciD)
Distance, Follicle, Area, Area polygon, Volume, Grid, Backfat
Obstetric package: aging tables for different species
Needle
Personalised Quick Access Menu
7″ LCD LED
500 cd/m2
800 x 480 px
Membrane keyboard
200 images
200 cine loops
AVI, BMP
To external flash drive via USB connector
To mobile App by WiFi (images only)
6-pin connector for data transfer
12-pin connector for goggles
No
Battery
Up to 7 h
Up to 4 h
< 20 s
Width 25.6 cm, Height 16.5 cm, Depth 6.9 cm
2.64 kg
IP32
Stand
OLED goggles
OPU
Extension and T-holder for rectal linear or rectal convex probe
Shade cover
Bag with shade cover
Transport bag
Suspenders
Waist belt
Standoff
Wi-Fi Antenna
Diagnostic images
Ultrasound examination of a sheep
Dramiński iScan 2 multi sheep pregnancy
Dramiński iScan 2 multi sheep pregnancy
Dramiński iScan 2 multi sheep pregnancy
Dramiński iScan 2 multi sheep pregnancy
Dramiński iScan 2 multi sheep pregnancy
Dramiński iScan 2 multi sheep pregnancy
Reference
After 6 months of use, I can confidently say that I made the right choice. During rectal examinations of cattle, I have not noticed any decrease in ergonomics or image quality compared to the linear probes of previously used devices. Additionally, the larger range of the convex probe is a significant advantage. I had no trouble performing pregnancy checks on sows. The curvature of the convex probe on the ISCAN 2 allows for seamless application to the tissues and works exceptionally well for examining small animals. I have had the opportunity to check pregnancies in dogs, cats, and even rabbits, and I no longer refer clients to competitors. I must also mention the battery—it lasts longer than a day, and since the set includes two batteries, I can go to any location without stress.
The set includes:
- iScan2 MULTI ultrasound scanner
- Ultrasound probe of your choice
- External battery
- Battery charger with 230V charging cable
- Suspenders
- USB storage adapter
- User manual (USB)
- Transport case
*You need to select the probe prior to purchase
Warranty:
24 months for the ultrasound scanner
12 months for probes
6 months for the battery
Set configuration
Configure a set tailored to your needs- Probes
- Accessories
Abdominal microconvex probe 150
- Frequency range:
4 – 9 MHz
- Central frequency:
6.5 MHz
- Scanning depth:
40 – 150 mm
- Lens radius:
15 mm
- Number of crystals:
128
Abdominal convex probe 156
- Frequency range:
2 – 8 MHz
- Central frequency:
5 MHz
- Scanning depth:
60 – 300 mm
- Lens radius:
50 mm
- Number of crystals:
128
Abdominal convex probe 161
- Frequency range:
2 – 5 MHz
- Central frequency:
3.5 MHz
- Scanning depth:
60 – 300 mm
- Lens radius:
50 mm
- Number of crystals:
128
Rectal linear probe 163
- Frequency Range:
4 – 9 MHz
- Central frequency:
7 MHz
- Scanning depth:
30 – 150 mm
- Probe face length:
60 mm
- Number of crystals:
128
Abdominal linear probe 171
- Frequency range:
6 – 14 MHz
- Central frequency:
10 MHz
- Scanning depth:
40 – 100 mm
- Probe face length:
40 mm
- Number of crystals:
128
Abdominal convex probe 172
- Frequency range:
1 – 6 MHz
- Central frequency:
3.5 MHz
- Scanning depth:
80 – 350 mm
- Lens radius:
60 mm
- Number of crystals:
128
Backfat probe 174
- Frequency range:
2 – 5 MHz
- Central frequency:
3.7 MHz
- Scanning depth:
60 – 300 mm
- Probe face length:
147 mm
- Number of crystals:
128
Abdominal microconvex probe 181
- Frequency range:
4 – 9 MHz
- Central frequency:
6.5 MHz
- Scanning depth:
40 – 150 mm
- Lens radius:
11 mm
- Number of crystals:
128
Microconvex probe for OPU 181/A
- Frequency range:
4 – 9 MHz
- Central frequency:
6.5 MHz
- Scanning depth:
40 – 150 mm
- Lens radius:
11 mm
- Number of crystals:
128
Abdominal convex probe 182
- Frequency range:
2 – 5 MHz
- Central frequency:
3.5 MHz
- Scanning depth:
60 – 350 mm
- Lens radius:
60 mm
- Number of crystals:
128
Backfat probe 188/2
- Frequency range:
2 – 5 MHz
- Central frequency:
3.7 MHz
- Scanning depth:
60 – 300 mm
- Probe face length:
180 mm
- Number of crystals:
128
Backfat probe 188/4
- Frequency range:
2 – 5 MHz
- Central frequency:
3.7 MHz
- Scanning depth:
60 – 300 mm
- Probe face length:
180 mm
- Number of crystals:
128
Rectal linear probe 191
- Frequency range:
5 – 10 MHz
- Central frequency:
7.5 MHz
- Scanning depth:
10 -150 mm
- Probe face length:
40 mm
- Number of crystals:
128
Rectal microconvex probe (P-probe) 192
- Frequency range:
4 – 9 MHz
- Central frequency:
5 MHz
- Scanning depth:
60 – 300 mm
- Lens radius:
20 mm
- Number of crystals:
128
Abdominal microconvex probe 195
- Frequency range:
4 – 9 MHz
- Central frequency:
6.5 MHz
- Scanning depth:
40 – 150 mm
- Lens radius:
15 mm
- Number of crystals:
128
Rectal convex probe 212
- Frequency range:
2 – 8 MHz
- Central frequency:
5 MHz
- Scanning depth:
60 – 250 mm
- Lens radius:
60 mm
- Number of crystals:
128
