Ultrasound scanner Alpinion X-CUBE i9
Increase your work efficiency TWICE
Contact
X-CUBE i9
The Alpinion X-CUBE i9 ultrasound scanner offers uncompromising performance and portability. With excellent image quality and advanced features, it provides veterinary professionals with the highest level of diagnostics.
What sets us apart?
Discover selected features of our new line of veterinary ultrasound scanners.
Excellent imaging quality for versatile diagnostic applications
Sensitive microvascular Doppler. Facilitates the assessment of vascularization, for example, in tumors or lymph nodes.
Comparing images from different examinations of the same patient. Useful for monitoring treatment progress.
Test protocols ensure repeatability. The assistant guides you through the test step by step, helping you obtain complete information.
CONFIGURATION TAILORED TO YOUR NEEDS
Whether you run a small animal clinic, practice equine orthopedics, or provide cardiology consultations, configure the X-CUBE i9 to suit your needs and pay only for the features you need.
2 ACTIVE PROBE PORTS
A quick change of the probe during the examination reduces time and stress for your patient.
ELASTOGRAPHY
Helps differentiate structures based on tissue elasticity analysis
WARRANTY UP TO 5 YEARS
Warranty extension available up to 5 years. The basic system warranty is 2 years.

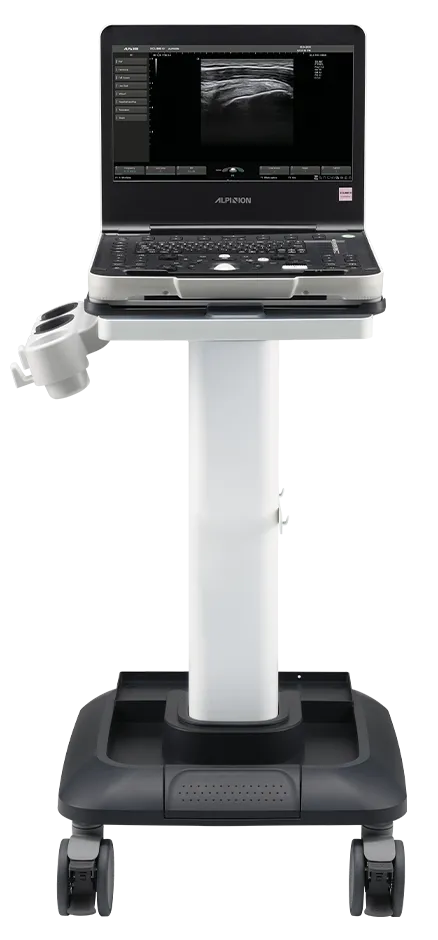

Technical data
Width: 385.0 mm
Depth: 370.0 mm
Height: 62.5 mm (with monitor closed) or 352.0 mm (in operation mode)
15.6” LCD LED
5.80 kg (Body) / 6.26 kg (with one battery)
1 battery: 30 min.
2 batteries: 60 min.
Color Flow Doppler (CF) mode
Power Doppler (PD) mod
Pulsed Wave Doppler (PWD) mod
Full Speckle Reduction Imaging (Full SRI)
Spatial Compounding Imaging (SCI)
FTHI (Filtered Tissue Harmonic)
PTHI (Pulse Inversion Tissue Harmonic)
Virtual Convex
EX-FOV (W-FOV)
Raw Data Processing
Post Processing
Xpeed™
Cardiovascular Measurement & Report
DICOM 3.0 Connectivity
DICOM Query
CW
Anatomical-M
Panoramic
Tissue Doppler Image
Elastography
Needle Vision™ Plus
CUBE Note
AutoEF
CEUS (for SC1-7H)
X+ MicroView
X+ Compare
X+ Assistan
SL3-19H – broadband single-crystal linear array transducer (3.0–19.0 MHz), 40 mm footprint, 192 elements
L10-25H – broadband high-frequency linear array transducer (10.0–25.0 MHz), 25 mm footprint, 192 elements
SC1-7H – broadband convex array transducer (1.0–7.0 MHz), 192 elements, X+ Crystal Signature technology
SC2-11H – broadband microconvex array transducer (2.0–11.0 MHz), 192 elements, X+ Crystal Signature technology
MP1-5X – multilayer phased array transducer (1.0–5.0 MHz), X+ Crystal Signature technology
SP3-8T – single-crystal phased array transducer (3.0–8.0 MHz)

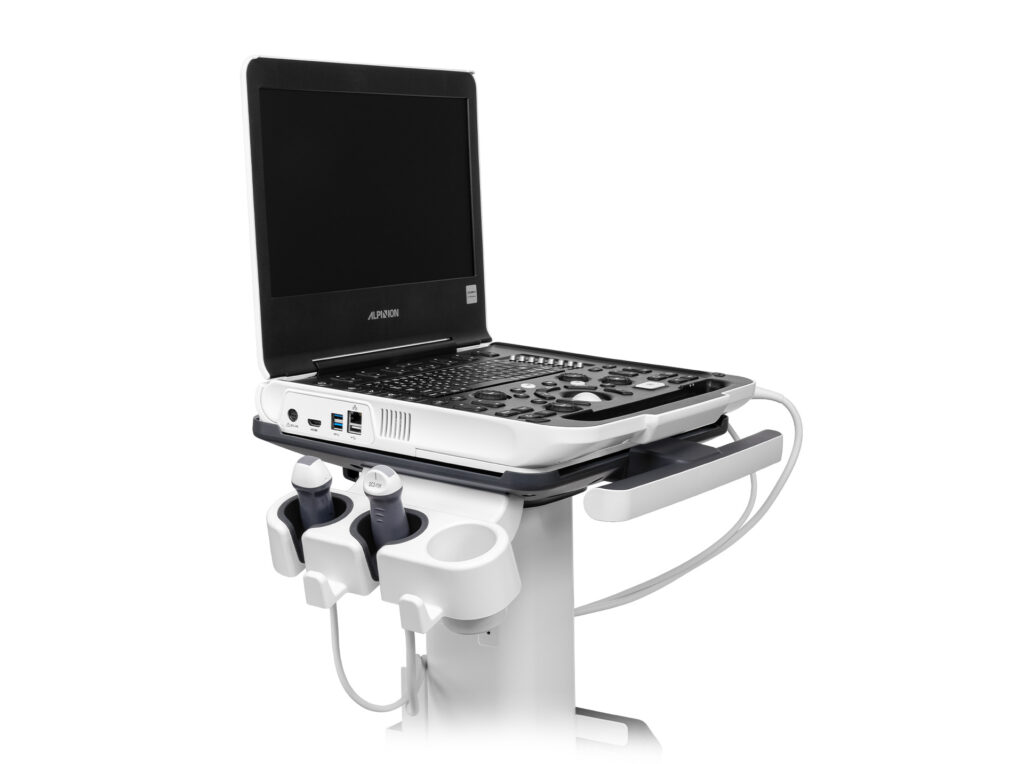

Stand with probe holders and pneumatic height adjustment
Wheeled case with 3 probe pockets
ECG module
WiFi antenna
Keyboard protector
Battery
2 years with the possibility of extension to 5 years

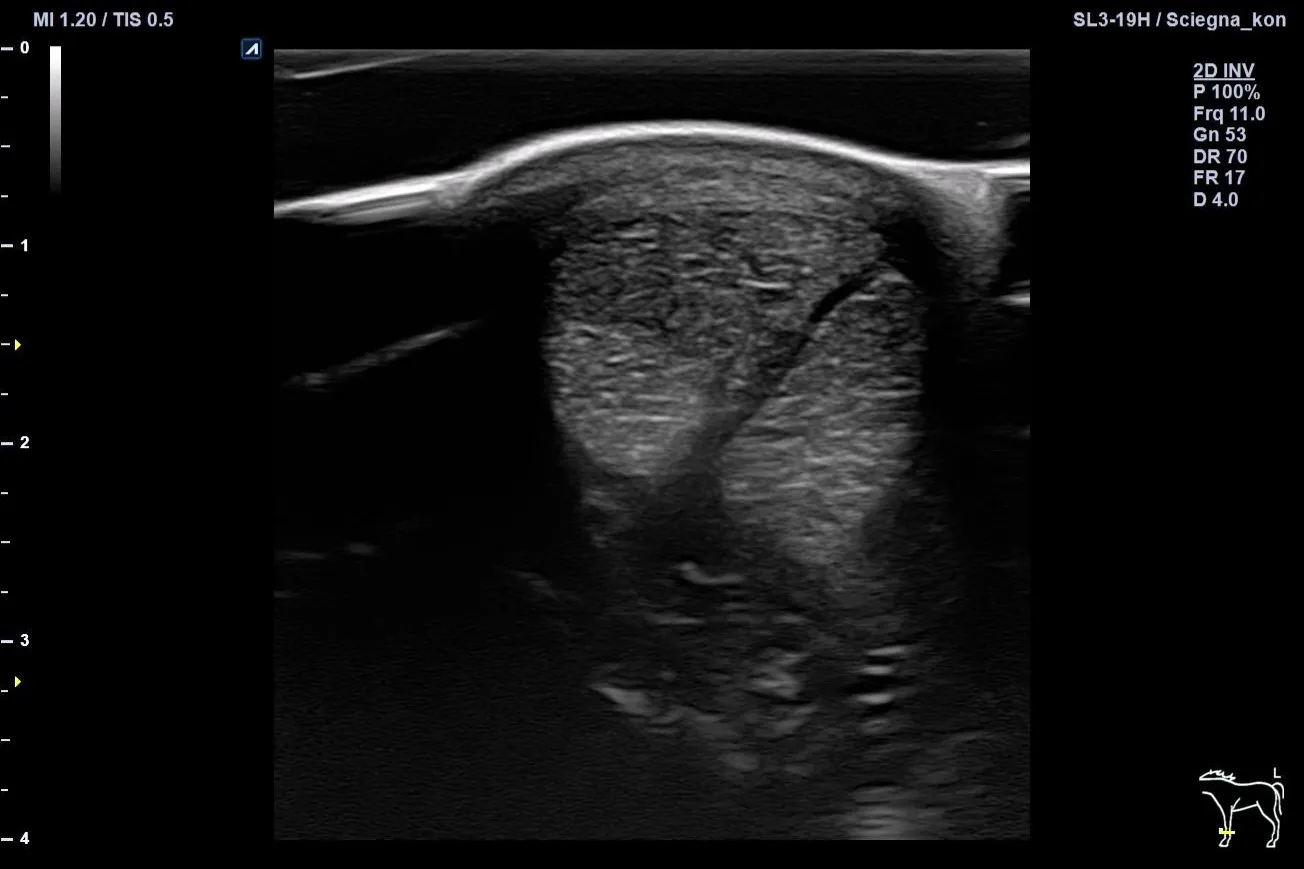

Horse - tendon
Horse - tendon
Horse - tendon
Horse - tendon

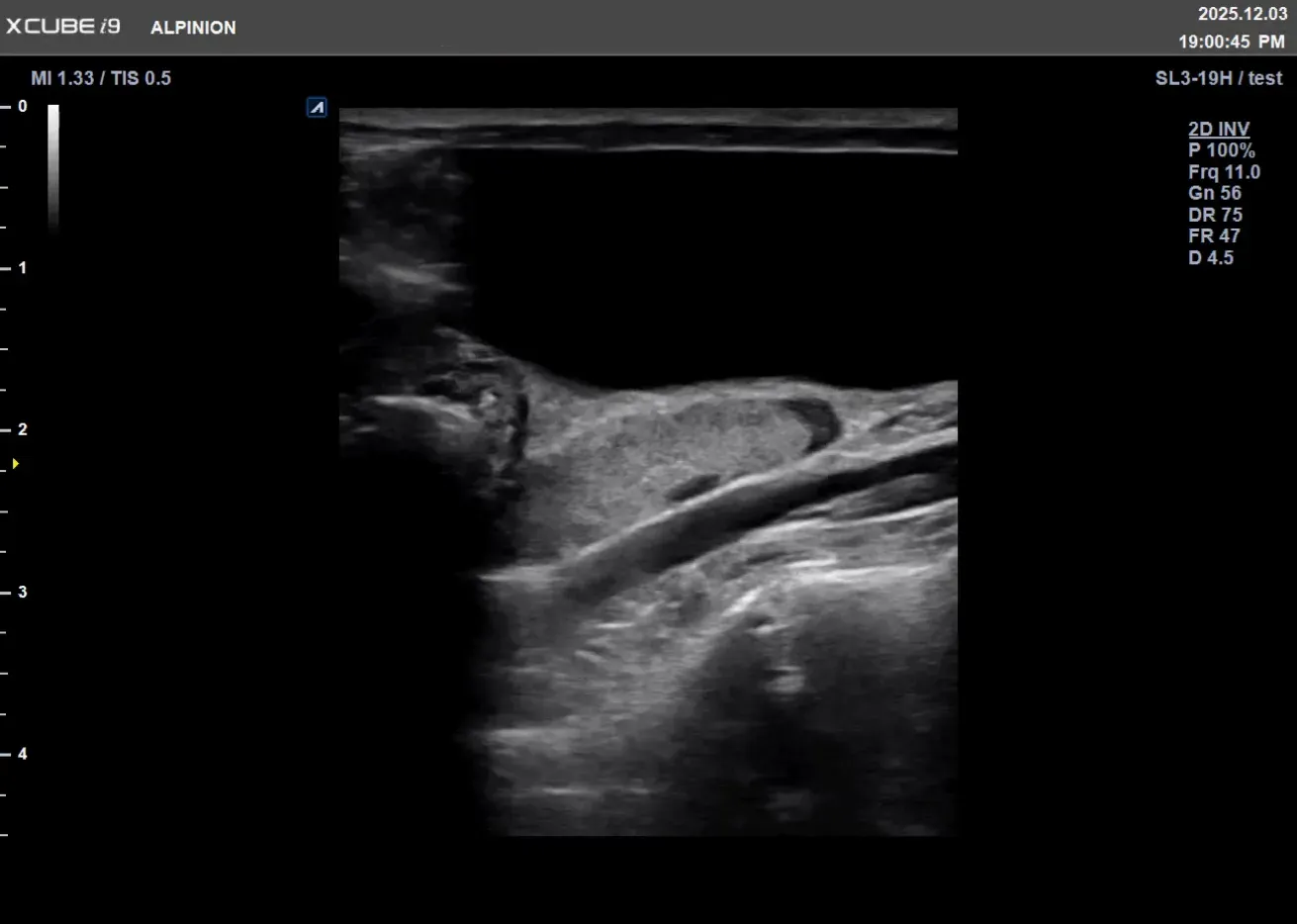

Cat - median iliac node
Cat - X+ MicroView, lymph node blood flow
Files to download
