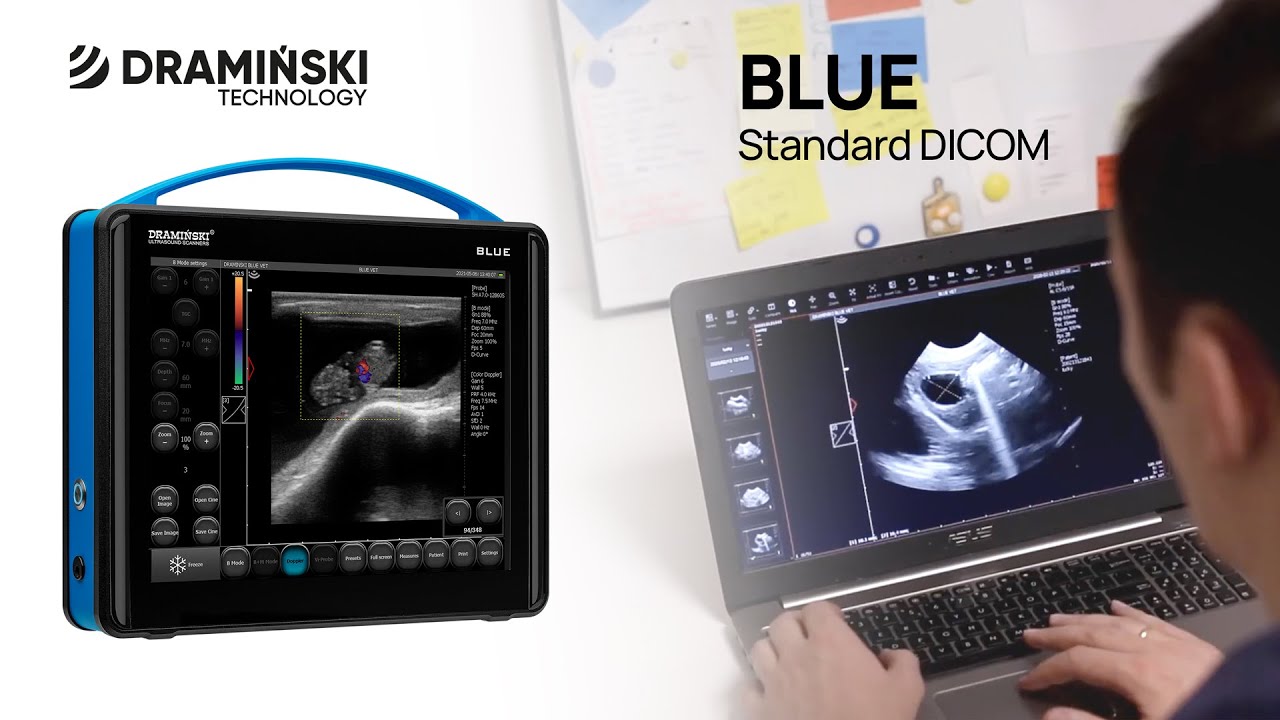

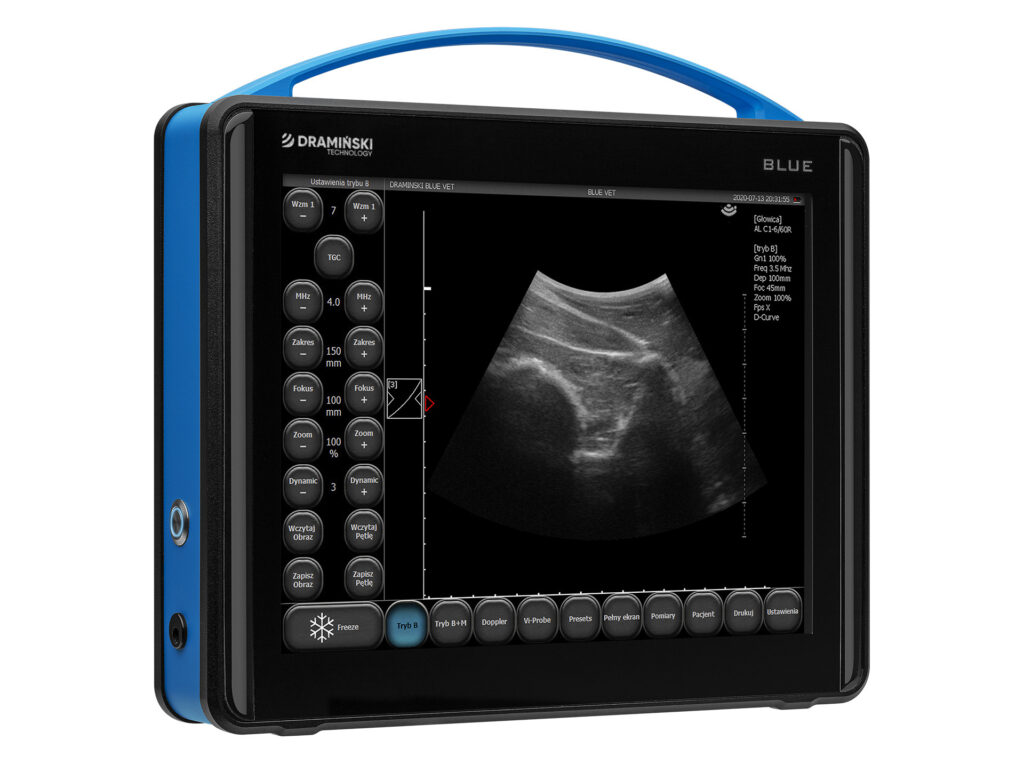

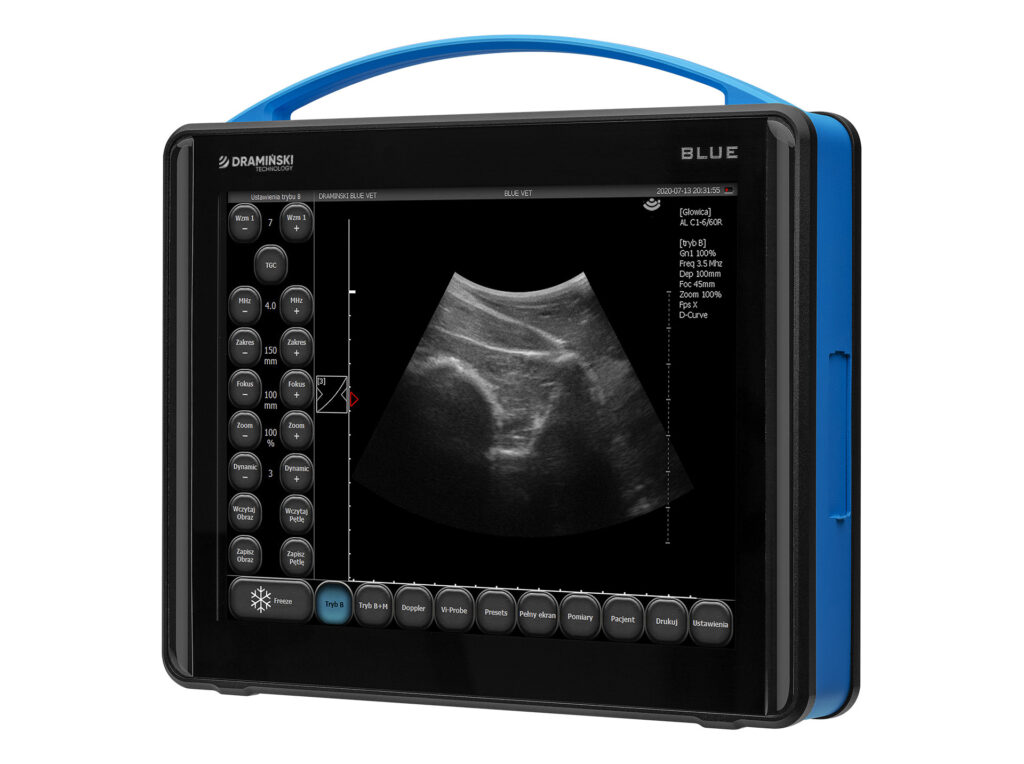

BLUE ultrasound scanner
Excellent Doppler – more precise examination
Ultrasound Scanner Blue
Modern ultrasound scanner with excellent Doppler ultrasonography and high quality imaging. Designed to diagnose small animals and horses.
See. Touch. Feel the difference.
DRAMIŃSKI BLUE is a veterinary diagnostic ultrasound scanner that provides surprisingly detailed images. Enjoy the sensitive touch screen. The scanner is second to none after the first examination.
Technologies of the future
A system that enhances contrast, sharpness and tissue differentiation making images readable and easy to interpret.
Distinguishes between slight echogenicity differences – a transfer curve ideally suited to the human eye perception.
Is a unique technology that provides phased array image type on the convex probe and convex image on the linear probe. BLUE provides enhanced vision, even through a small acoustic window.
BLUE Veterinary Ultrasound Scanner Features
STANDBY AND OPERATING TIME
The veterinary ultrasound scanner is ready to operate after 30 seconds. The built-in battery provides up to 2.5-h convenient operation with no power supply connection needed.
OPERATION IS SIMPLER THAN EVER
Active fields allow quick standard parameter setting. Measure the distance immediately after freezing the image – no additional menu needed. Entering a patient’s data before an ultrasound examination is not necessary. This can be done while saving the first image.
3 DOPPLER IMAGING MODES

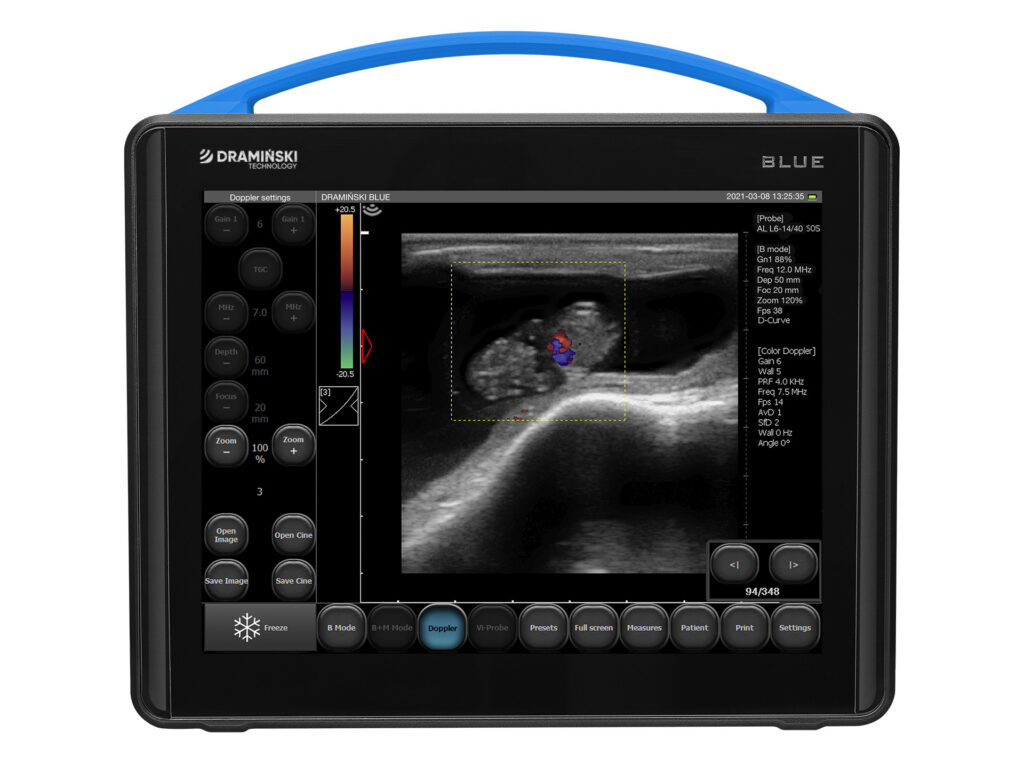

The veterinary scanner has three Doppler imaging modes: Color Doppler, Power Doppler, Pulse Wave Doppler. The technology allows examining blood flow in blood vessels.
REPLACEABLE PROBE SYSTEM
If the probe needs to be replaced during an ultrasound examination, the system will detect the new one automatically.
MULTITASKING
Whether it is a quick emergency screening of a patient or an accurate ultrasound diagnostics in orthopaedic surgery, BLUE will always be there, ready for new challenges.
LIGHT DESIGN
Let other compromise. We have applied solutions that allow using the latest technology in the veterinary ultrasound scanner weighing 4 kg only.
LARGE TOUCH SCREEN
The 12″ LED LCD display guarantees a successful diagnosis. The features are controlled via a sensitive touch panel. Quick and easy operation.
WARRANTY
The DRAMIŃSKI BLUE veterinary ultrasound scanner has a two-year warranty.
Technical data
B Mode
B+B Mode
4B Mode
M Mode
B+M Mode
Color Doppler
Power Doppler (PDI)
Pulse Wave Doppler (PWD)
range: 1-14 MHz
(depends on probe)
Backfat 2-5 MHz
Convex 1-6 MHz
Convex 2-5 MHz
Convex 2-8 MHz
Hockey stick 6-14 MHz
Abdominal linear 4-12 MHz
Abdominal linear 6-14 MHz
Microconvex 4-9 MHz
OPU 4-9 MHz
Rectal linear 4-9 MHz
Rectal convex 2-8 MHz
Rectal microconvex (P-probe) 4-9 MHz
Yes
Freeze
Zoom 60 – 300%
Full screen
Invert left-right and up-down
Saving images
Saving cine loops
Dynamic range
Frame averaging
Vi-Probe
D-Curve
LuciD
Compound Imaging (CI)
Line density
Field of view (FOV)
TGC
Depend on probe:
SDFT, DDFT, Horse SL, Horse foot, Horse back, Horse eye
Dog cardio, Dog abdominal, Cat cardio, Cat abdominal
FAST
Yes (LuciD)
Basic: Distance, Follicle, Area, Ellipse Area, Grid, Stenosis, Volume
Obstetric package: aging tables for different species
Cardiology package: Heart Rate (HR), LA/Ao, Left Ventricle function (LV), Left Ventricle Volume: V Simpson’s LVAM – LVAP method, V Simpson’s Single plane method, V Bullet method
Doppler: Resistance Index (RI), Pulsation Index (PI), Peak Systolic Velocity (PSV), End-Diastolic Velocity (EDV), Average Velocity (AVG)
Doppler Point
Acceleration Time (AT)
Heart Rate (HR)
Blood Flow Area %
Battery check when OFF
Hidden active fields
Easy distance measurement
Precise measurements with magnifying glass
12″ LCD LED
500 cd/m2
1024 x 768 px
Capacitive touchscreen
30 GB
PNG, AVI, MP4, MOV, DICOM 3.0
To external flash drive via USB
1 x USB 3.0, 1 x USB 2.0, 2 x LAN, 1 x HDMI
No
Power adapter and built-in battery
Up to 2 h 30 mins.
Up to 4 h
About 30 s
Width 31 cm, Height 28 cm, Depth 6.5 cm
4 kg
IP30
Wheeled stand for horse orthopedics
Wheeled high stand
Wheels for hard case
Standoff
Carry straps
Sunshade
Rectal probe extension for cattle
Rectal probe extension for sheep
T-holder for rectal linear probe
T-holder for rectal convex probe
Powerbank
Diagnostic images
References
An outstanding veterinary ultrasound, comfortable to use, intuitive, with a touchscreen that significantly facilitates the work of the veterinarian. Perfect even for those new to ultrasound examinations. The image quality pleasantly surprised me, as did the presence of Doppler functionality, which enhances diagnostics. I gladly take it on house calls—it's conveniently packed in a case with a full set of probes. Highly recommended!
The Blue ultrasound offers a great image quality for OPU in horses. It also has a line that can be programmed to see where the needles goes into the ovary and the track it follows, helping a lot during the procedure. The ultrasound is easy to use, has a very light weight and has a battery that lasts for 2.5 hours. The OPU handle is also very convenient and its design helps a lot during the procedure.
I have received your new ultrasound device and I am very impressed. I appreciate the stability provided by the four mounting points. I value working with a company that continues to research and develop its devices. It’s remarkable for the veterinary market. I also appreciate your availability, quick and hassle-free shipping, and device repair services. As for the device itself, I particularly value the high image resolution, build quality, and the balanced approach to production. This is not a device you would simply discard!
The set includes:
- BLUE ultrasound scanner with built-in battery
- Ultrasound probe of your choice
- Suspenders
- Stand
- Power supply
- User manual
- Transport case
Set configuration
Configure a set tailored to your needs- Probes
- Accessories
Abdominal convex probe 156
- Frequency range:
2 – 8 MHz
- Central frequency:
5 MHz
- Scanning depth:
60 – 300 mm
- Lens radius:
50 mm
- Number of crystals:
128
Abdominal convex probe 161
- Frequency range:
2 – 5 MHz
- Central frequency:
3.5 MHz
- Scanning depth:
60 – 300 mm
- Lens radius:
50 mm
- Number of crystals:
128
Rectal linear probe 163
- Frequency Range:
4 – 9 MHz
- Central frequency:
7 MHz
- Scanning depth:
30 – 150 mm
- Probe face length:
60 mm
- Number of crystals:
128
Abdominal linear probe 171
- Frequency range:
6 – 14 MHz
- Central frequency:
10 MHz
- Scanning depth:
40 – 100 mm
- Probe face length:
40 mm
- Number of crystals:
128
Abdominal convex probe 172
- Frequency range:
1 – 6 MHz
- Central frequency:
3.5 MHz
- Scanning depth:
80 – 350 mm
- Lens radius:
60 mm
- Number of crystals:
128
Backfat probe 174
- Frequency range:
2 – 5 MHz
- Central frequency:
3.7 MHz
- Scanning depth:
60 – 300 mm
- Probe face length:
147 mm
- Number of crystals:
128
Abdominal microconvex probe 181
- Frequency range:
4 – 9 MHz
- Central frequency:
6.5 MHz
- Scanning depth:
40 – 150 mm
- Lens radius:
11 mm
- Number of crystals:
128
Microconvex probe for OPU 181/A
- Frequency range:
4 – 9 MHz
- Central frequency:
6.5 MHz
- Scanning depth:
40 – 150 mm
- Lens radius:
11 mm
- Number of crystals:
128
Abdominal convex probe 182
- Frequency range:
2 – 5 MHz
- Central frequency:
3.5 MHz
- Scanning depth:
60 – 350 mm
- Lens radius:
60 mm
- Number of crystals:
128
Backfat probe 188/2
- Frequency range:
2 – 5 MHz
- Central frequency:
3.7 MHz
- Scanning depth:
60 – 300 mm
- Probe face length:
180 mm
- Number of crystals:
128
Backfat probe 188/4
- Frequency range:
2 – 5 MHz
- Central frequency:
3.7 MHz
- Scanning depth:
60 – 300 mm
- Probe face length:
180 mm
- Number of crystals:
128
Rectal linear probe 191
- Frequency range:
5 – 10 MHz
- Central frequency:
7.5 MHz
- Scanning depth:
10 -150 mm
- Probe face length:
40 mm
- Number of crystals:
128
Rectal microconvex probe (P-probe) 192
- Frequency range:
4 – 9 MHz
- Central frequency:
5 MHz
- Scanning depth:
60 – 300 mm
- Lens radius:
20 mm
- Number of crystals:
128
Linear hockey stick 194
- Frequency range:
6 – 14 MHz
- Central frequency:
9 MHz
- Scanning depth:
10 – 60 mm
- Probe face length:
26 mm
- Number of crystals:
128
Abdominal microconvex probe 195
- Frequency range:
4 – 9 MHz
- Central frequency:
6.5 MHz
- Scanning depth:
40 – 150 mm
- Lens radius:
15 mm
- Number of crystals:
128
Abdominal linear probe 196
- Frequency range:
4 – 12 MHz
- Central frequency:
8 MHz
- Scanning depth:
10 – 100 mm
- Probe face length:
40 mm
- Number of crystals:
128
Rectal convex probe 212
- Frequency range:
2 – 8 MHz
- Central frequency:
5 MHz
- Scanning depth:
60 – 250 mm
- Lens radius:
60 mm
- Number of crystals:
128
Rectal linear probe 223
- Frequency range:
4 – 9 MHz
- Central frequency:
7 MHz
- Scanning depth:
30 – 150 mm
- Probe face length:
64 mm
- Number of crystals:
128

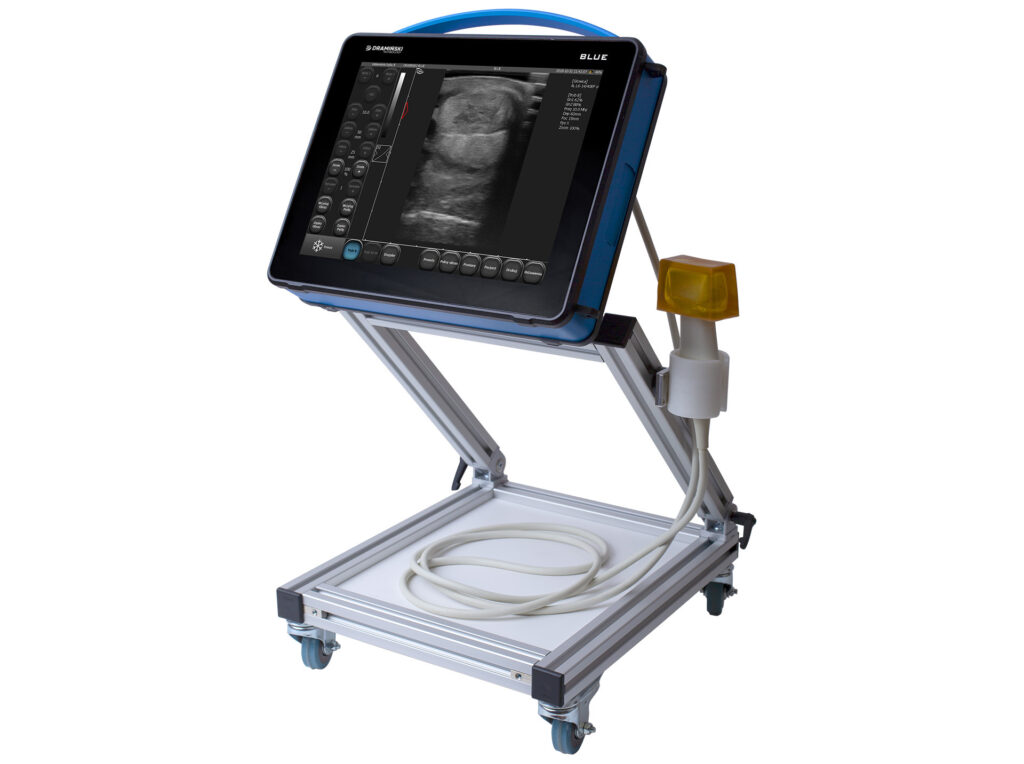

Wheeled stand for tendons examination
Read moreWheeled high stand

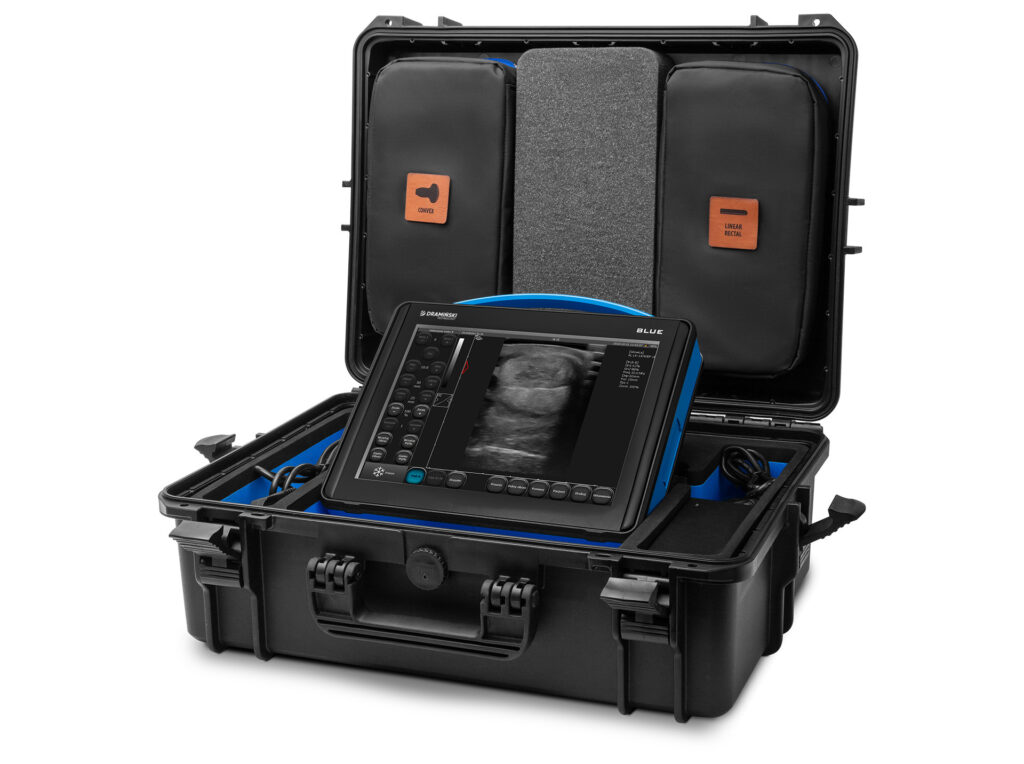

Read moreRobust transport case with wheels for BLUE and 4Vet Slim
Read moreExtension for rectal linear probe 163
Read moreExtension for rectal convex probe 212
Read moreExtension for rectal linear probe
Read moreShade cover for BLUE
Read moreStandoff for rectal linear probe
Read moreStandoff for abdominal linear probe
Read morePower bank for BLUE
Read moreOvum Pick-Up Monoblock
Read moreOvum Pick-Up Dramiński (without transducer)
Read moreSelected accessories
